Circular Dry Lining Box

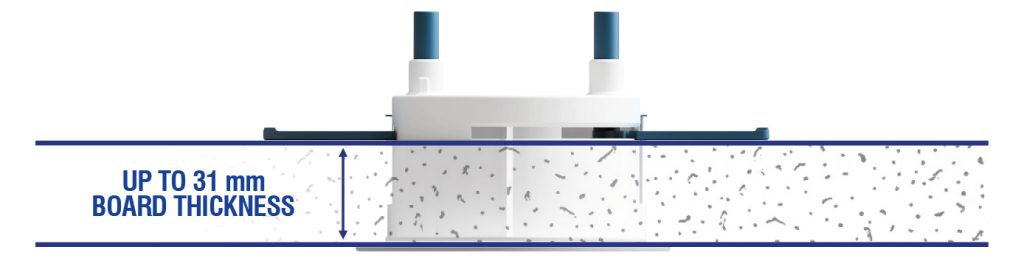

Centaur expand their unique range of dry lining boxes with spring loaded lugs by introducing a circular product for ceiling applications. A generous depth of 45mm and the facility to grip ceiling tiles thicknesses from 9 to 31mm are just two of this product’s many features.
Not only do the lugs spring helpfully up behind the ceiling tiles but they expand to offer over 140mm of support across the 70mm of required cut-out. This level of support far exceeds the standard requirements of accommodating suspended loads of up to 3 kilos.
Two 20mm entry knock-outs are provided in the base should conduit entry glands be used and both box and lugs are manufactured in self-extinguishing PVCu.
No matter what tile thickness is encountered two 40mm long fixing screws are also provided that pick up the brass threads in the lugs which are on standard BESA 50.8mm fixing centres.
The new round dry lining box is not only fast and easy to install but offers generous space for wiring and more than adequate support for intended lighting products. Additionally, it offers a stronger and better method of fixing for other ceiling products such as smoke and heat detectors, CO2 and other alarms. A useful and versatile accessory box for all electrical installers.
